TYPE S HD Solar Powered Wireless Backup Camera with Ultrasonic Backup Sensor
Both the camera and sensor are adjustable, ensuring optimal view and coverage no matter where you install them. Conveniently built into a license plate frame, installation is a breeze, and signal transmission from the camera to the dashboard monitor is completely wireless, eliminating the need for hardwiring. The camera recharges itself via solar panels, eliminating the need for regular charging after the initial setup.
With a simple wave of your hand, you can activate the 6" HD 720P LCD monitor for easy and safe use. The enhanced night vision feature ensures clear HD visibility even in low-light conditions, making your driving experience safer and more convenient.
As close to a full OEM backup camera as possible! The new TYPE S wireless solar-powered backup camera combines two of our best-selling features: the solar-powered wireless backup cam and the solar-powered backup sensor. With this system, you'll not only be able to see what's behind your vehicle but also receive audible warnings when you get too close to physical obstacles.

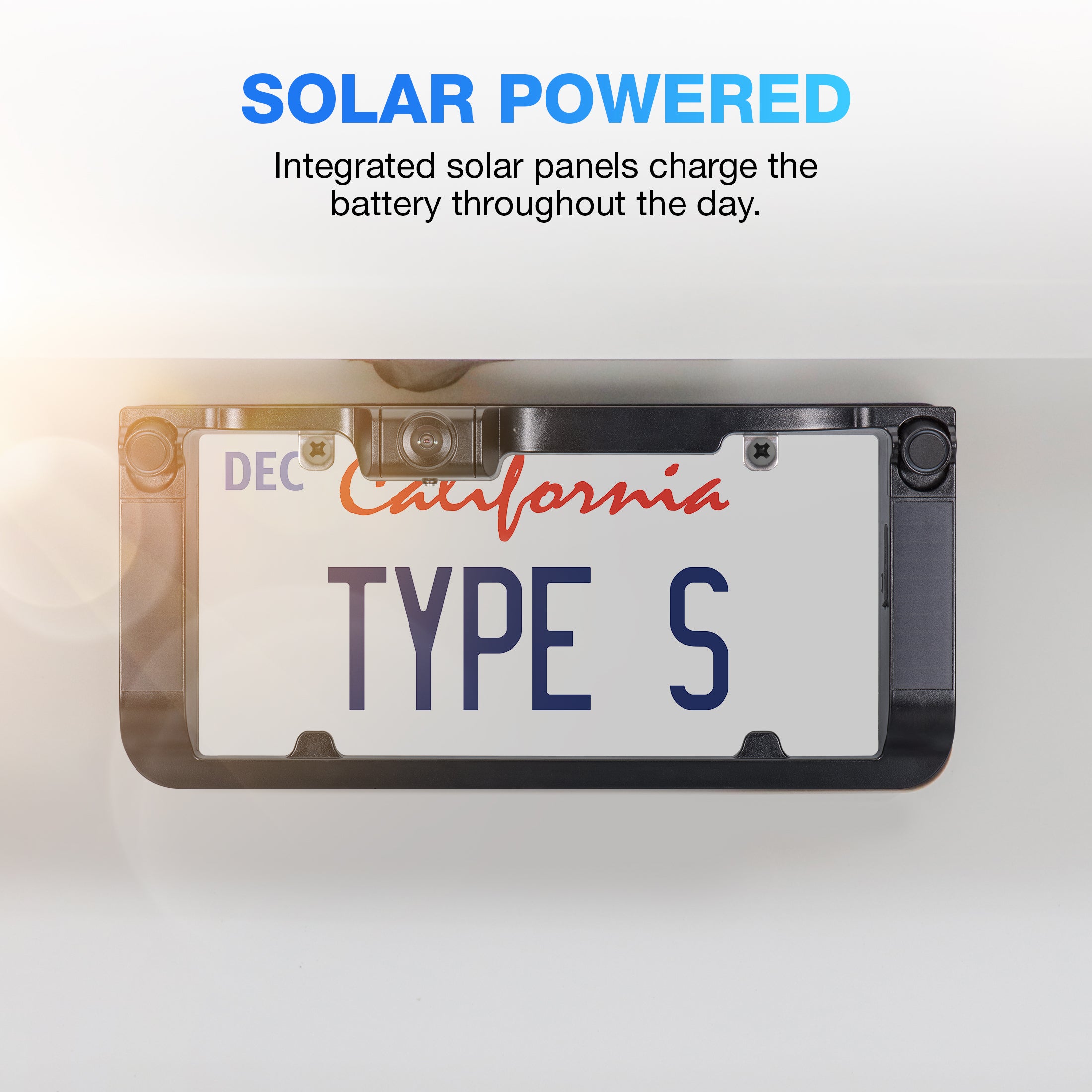

The TYPE S wireless backup camera is self-charging thanks to its built-in solar panels, eliminating the need for hardwiring or lengthy cable installations in your vehicle. It's neatly incorporated into a license plate frame, making installation incredibly easy. Just attach it to your vehicle like a standard license plate frame for a hassle-free and seamless setup
As close to a full OEM backup camera as possible! The new TYPE S wireless solar-powered backup camera combines two of our best-selling features: the solar-powered wireless backup cam and the solar-powered backup sensor. With this system, you'll not only be able to see what's behind your vehicle but also receive audible warnings when you get too close to physical obstacles.
The TYPE S wireless backup camera is self-charging thanks to its built-in solar panels, eliminating the need for hardwiring or lengthy cable installations in your vehicle. It's neatly incorporated into a license plate frame, making installation incredibly easy. Just attach it to your vehicle like a standard license plate frame for a hassle-free and seamless setup
With its 160° wide-angle lens, the portable rearview camera ensures complete coverage of your vehicle's rear. Notably, both the camera and backup sensor are adjustable, allowing you to fine-tune their positions to enhance safety while reversing. This versatility reduces the risk of accidents, helping you avoid dents and ensuring a safer driving experience.
With its 160° wide-angle lens, the portable rearview camera ensures complete coverage of your vehicle's rear. Notably, both the camera and backup sensor are adjustable, allowing you to fine-tune their positions to enhance safety while reversing. This versatility reduces the risk of accidents, helping you avoid dents and ensuring a safer driving experience.
Our portable wireless backup camera is designed with your safety in mind. It features a 6" display and hands-free activation, allowing quick access by simply waving your hand. This convenience extends beyond reversing; you can use it while driving forward, enhancing visibility for lane changes and overall safety.
While the night (and your garage) may be dark and full of obstacles, you won't require Melisandre or the Lord of Light to guide you. Our wireless backup camera not only boasts crystal-clear 720P HD resolution but also integrates a digital HD image processor, delivering superior night vision capabilities of up to 30 feet, even in complete darkness.
Parallel parking on busy streets is no longer a nightmare! Add an extra camera (BT534021, sold separately) to your front license plate and pair it with the same dashboard monitor. This allows you to see both what's behind and in front of your vehicle, eliminating all blind spots with a simple hand wave and enabling confident parallel parking.
The Hi-Definition backup camera is built with durable IP67-rated materials, designed to withstand various conditions, be it rain, snow, or heat. It remains securely attached to the back of your vehicle. Additionally, the monitor's suction cup is designed to firmly adhere to your windshield, ensuring your focus stays on safe driving.
Our portable wireless backup camera is designed with your safety in mind. It features a 6" display and hands-free activation, allowing quick access by simply waving your hand. This convenience extends beyond reversing; you can use it while driving forward, enhancing visibility for lane changes and overall safety.
While the night (and your garage) may be dark and full of obstacles, you won't require Melisandre or the Lord of Light to guide you. Our wireless backup camera not only boasts crystal-clear 720P HD resolution but also integrates a digital HD image processor, delivering superior night vision capabilities of up to 30 feet, even in complete darkness.
Parallel parking on busy streets is no longer a nightmare! Add an extra camera (BT534021, sold separately) to your front license plate and pair it with the same dashboard monitor. This allows you to see both what's behind and in front of your vehicle, eliminating all blind spots with a simple hand wave and enabling confident parallel parking.
The Hi-Definition backup camera is built with durable IP67-rated materials, designed to withstand various conditions, be it rain, snow, or heat. It remains securely attached to the back of your vehicle. Additionally, the monitor's suction cup is designed to firmly adhere to your windshield, ensuring your focus stays on safe driving.
FAQ

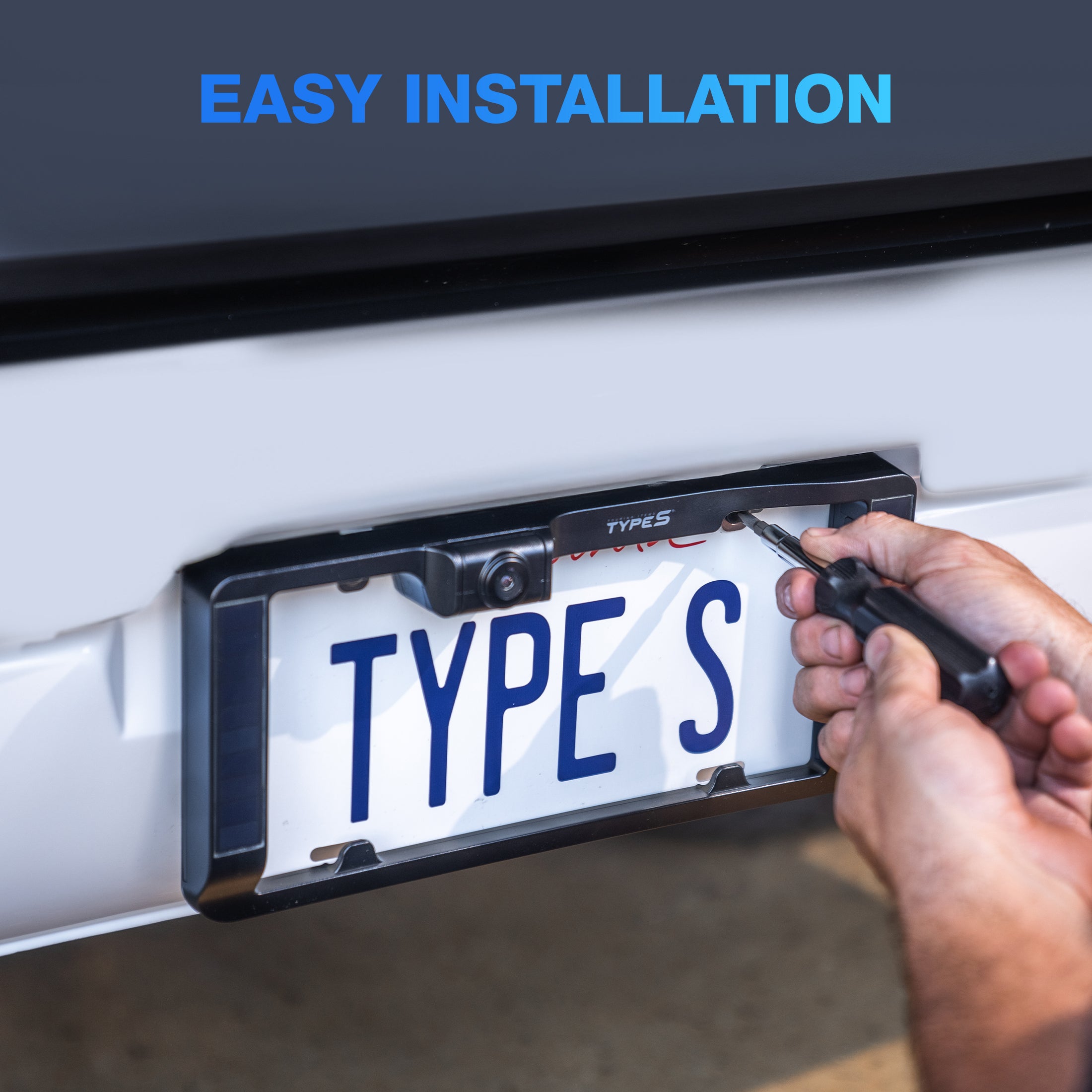

How’s the camera installed? How do I know that it’s compatible with my vehicle?
The camera can be seamlessly installed over your rear license plate; it is universally compatible with all vehicles (license plates), no need to worry.
The dashboard can be attached to your windshield via its included suction cup, and it uses the 12/24V port in your car as power source. We recommend using the top of your dashboard as weight support for the monitor to prevent it from falling off during extreme temperatures.
Sensor too sensitive, anyway I can turn it off?
Yes, you can mute the beeping via the dashboard monitor. You may also adjust the sensor angle to keep it from going off too often.
Do I need to connect any cable between the camera and the monitor?
No, the transmission between the camera and the monitor is wireless, no need to run a cable. However, you do need to connect the dashboard monitor to power.
How to activate the camera?

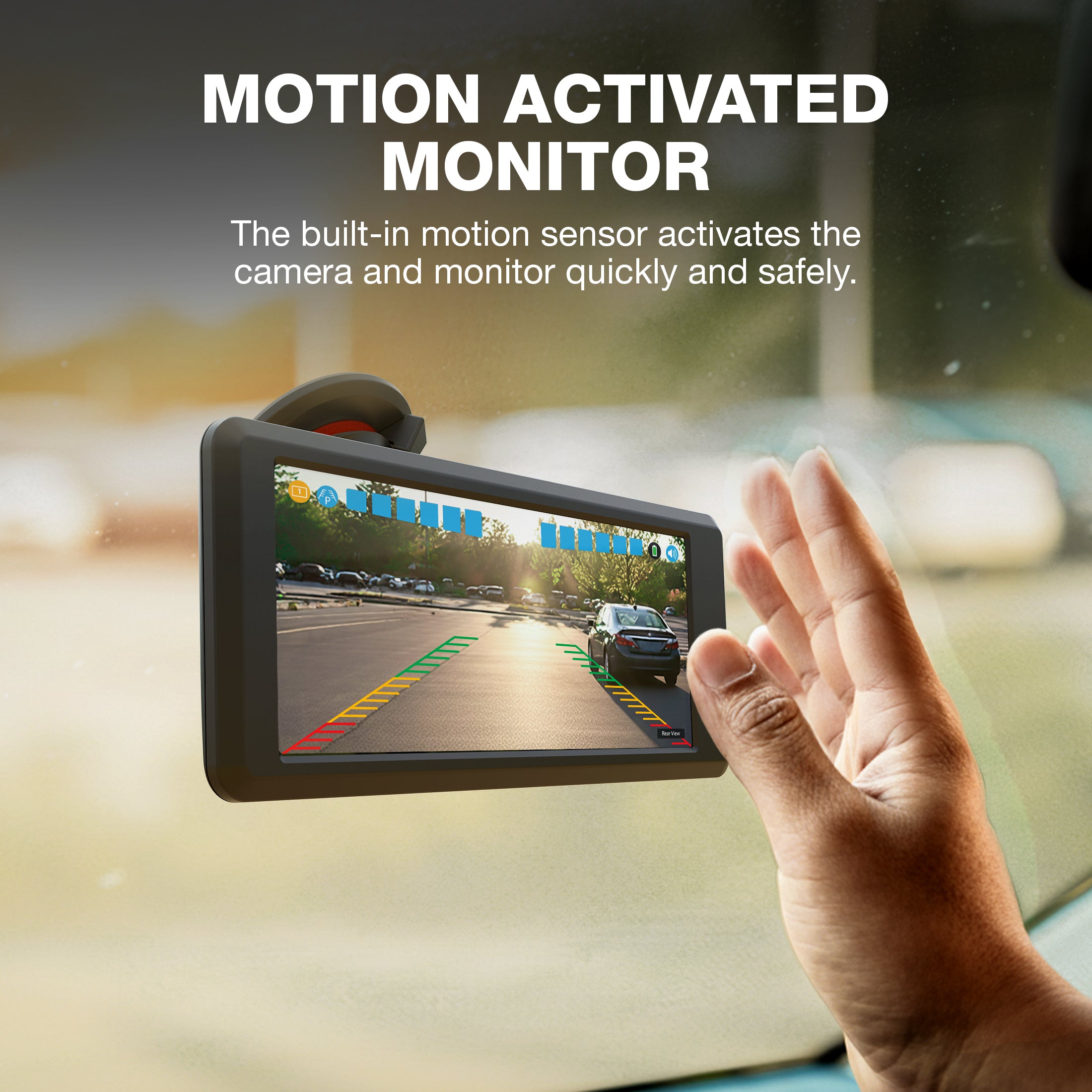

The monitor features a motion sensor. Simply wave your hand in front of the monitor to wake the monitor and the camera up.
What does the dashboard monitor use as its power source?
The monitor comes with a power adapter that connects to your 12/24V cigarette lighter outlet. It should power on/off with your vehicle. However, if your vehicle provides constant power through the 12/24V port even when it’s off, please remember to unplug from the port to prevent it from draining your battery.
My license plate is not “centered”, is that ok?
No problem! Our camera has an extremely wide viewing angle, it’ll still cover the entirety of the road behind you.
Does the height of my license plate location matter?
Yes, but both the sensors and the camera are adjustable. Simply adjust them to the angle that’s suitable for your license plate.
What if it’s cloudy or raining outside, will the camera still be charged?
It’ll still charge but slower. According to our calculations, unless you use the camera over 20 times per day everyday for two weeks straight, you shouldn’t be running into any sort of power/battery issue.
Can I place the camera in the front on my front license plate?
Yes, you can! Just remember to “flip” the image horizontally via the dashboard monitor!
How long does it take to fully charge the camera?
If you connect it to a power source directly via the USB cable, it’ll take ~1.5 hours to charge from 0 to 100. Solar charging is much slower; we recommend fully charging the camera using the power cable before installing. Solar charging should be more than enough from then on.
Is the camera waterproof/weatherproof?
Yes, the camera is built with durable IP67 material that can withstand any kind of weather, all year long.
How long is the warranty?
TYPE S offers 1 year warranty. Feel free to contact our customer service for more details.
Product specification
Monitor:
Length: 9.05 in / 23 cm
Width: 0.83 in / 2.1 cm
Height: 3.15 in / 8 cm
Backup Camera:
Length: 12.2 in / 31 cm
Width: 1.26 in / 3.2 cm
Height: 5.91 in / 15 cm
2.4GHz
Monitor: DC 12V/24V
Back-up Camera: DC 5V
14°F ~ 122°F (-10°C ~ 50°C)
IP65 Rating
5200mAh
33 feet / 10 Meters (without interference or obstruction)
BT532858-1 (UPC 840005328583)

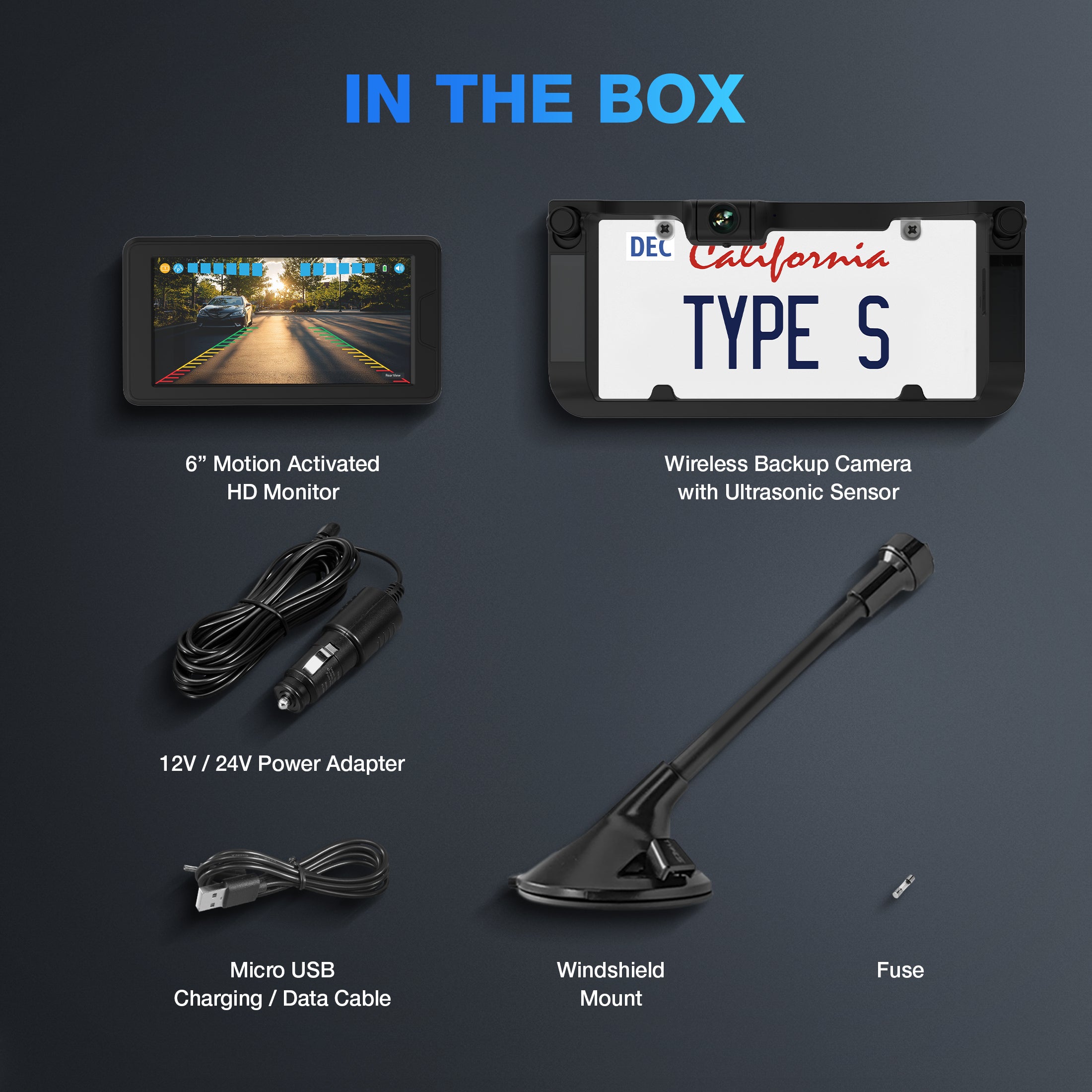

In the Box
- 6" Motion Activated HD Monitor
- Wireless Backup Camera with Ultrasonic Sensor
- 12V / 24V Power Adapter
- 250V 2A Spare Fuse
- Windshield Mount
- 33" MicroUSB Charging/Data Cable
- 2 x License Plate Machine Screw (Optional)
- 2 x License Plate Self-Tapping Screw (Optional)
- 2 x Two-Way Mounting Tab (Optional)
- 2 x Mounting Screw & Nut (Optional)
- Dash Mount
- Quick Install Guide
- Warranty Card
