TYPE S HD Solar-Powered Backup Camera With 6" HD Monitor and Adjustable Lens
Code copied!

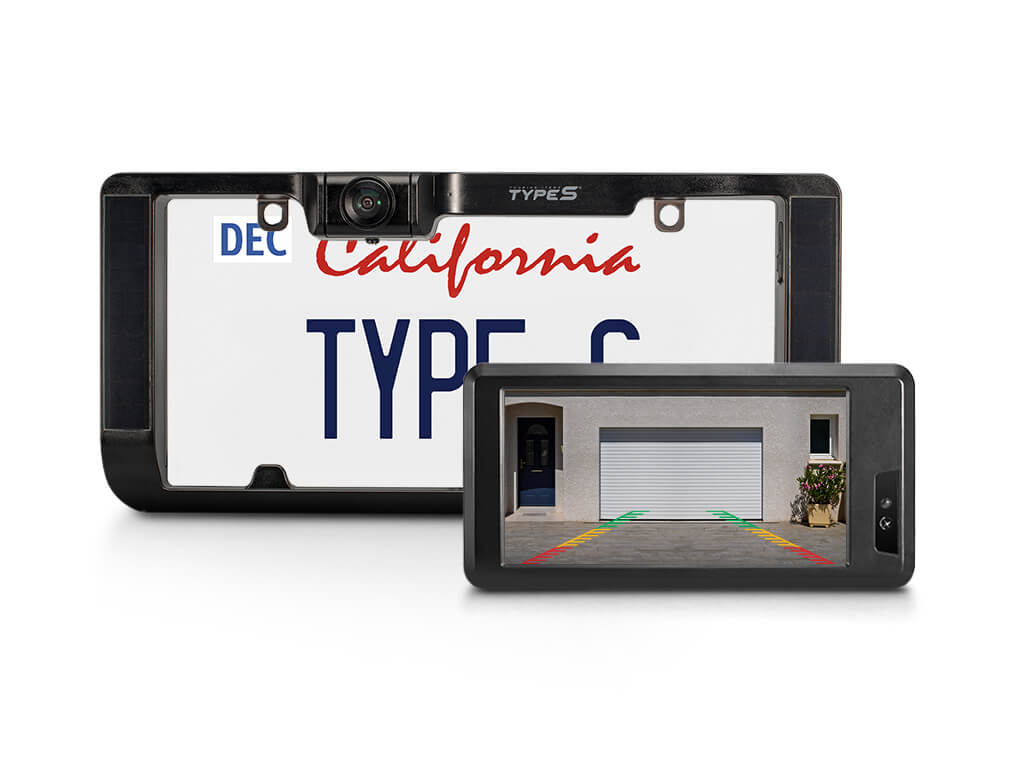

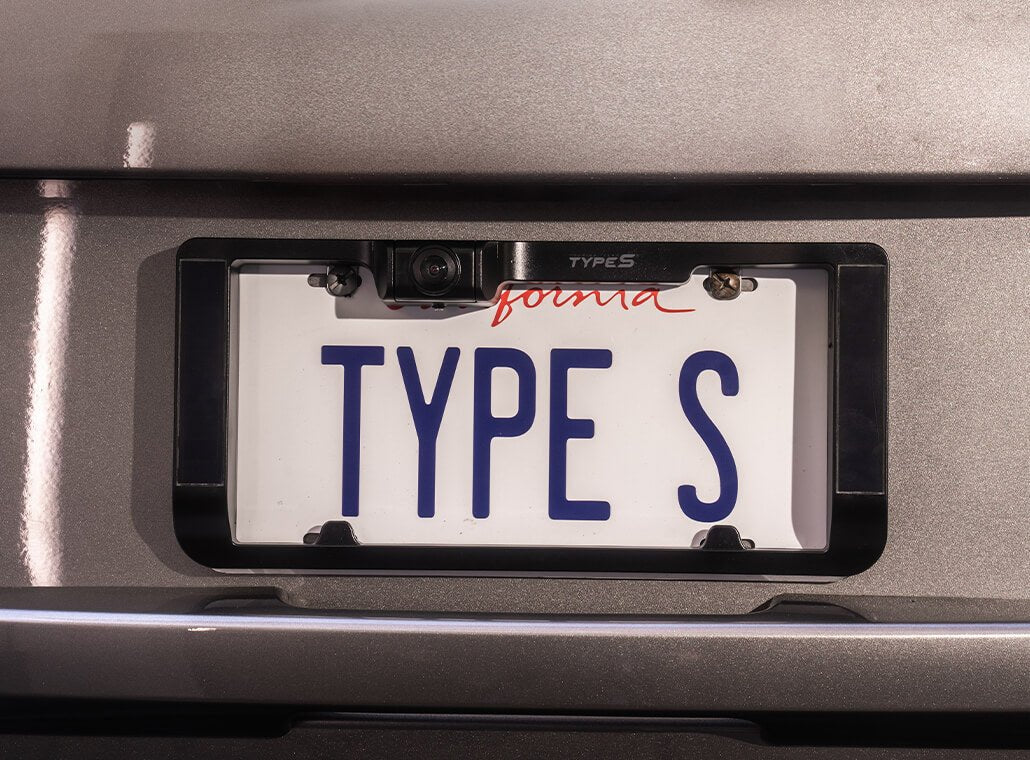

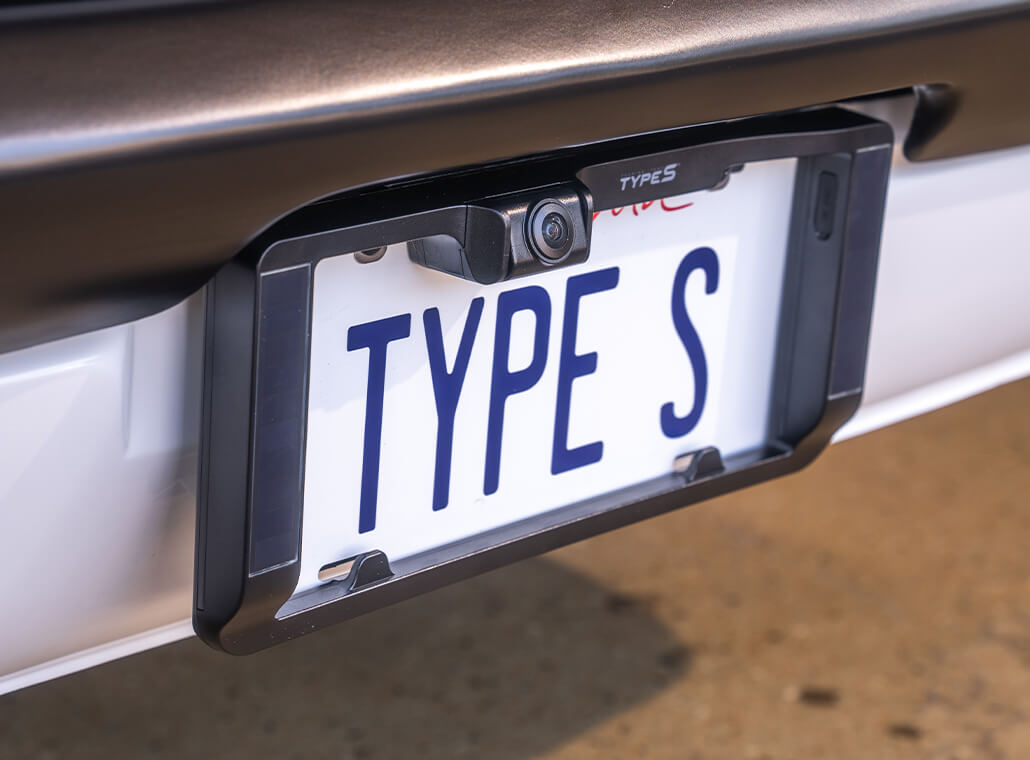

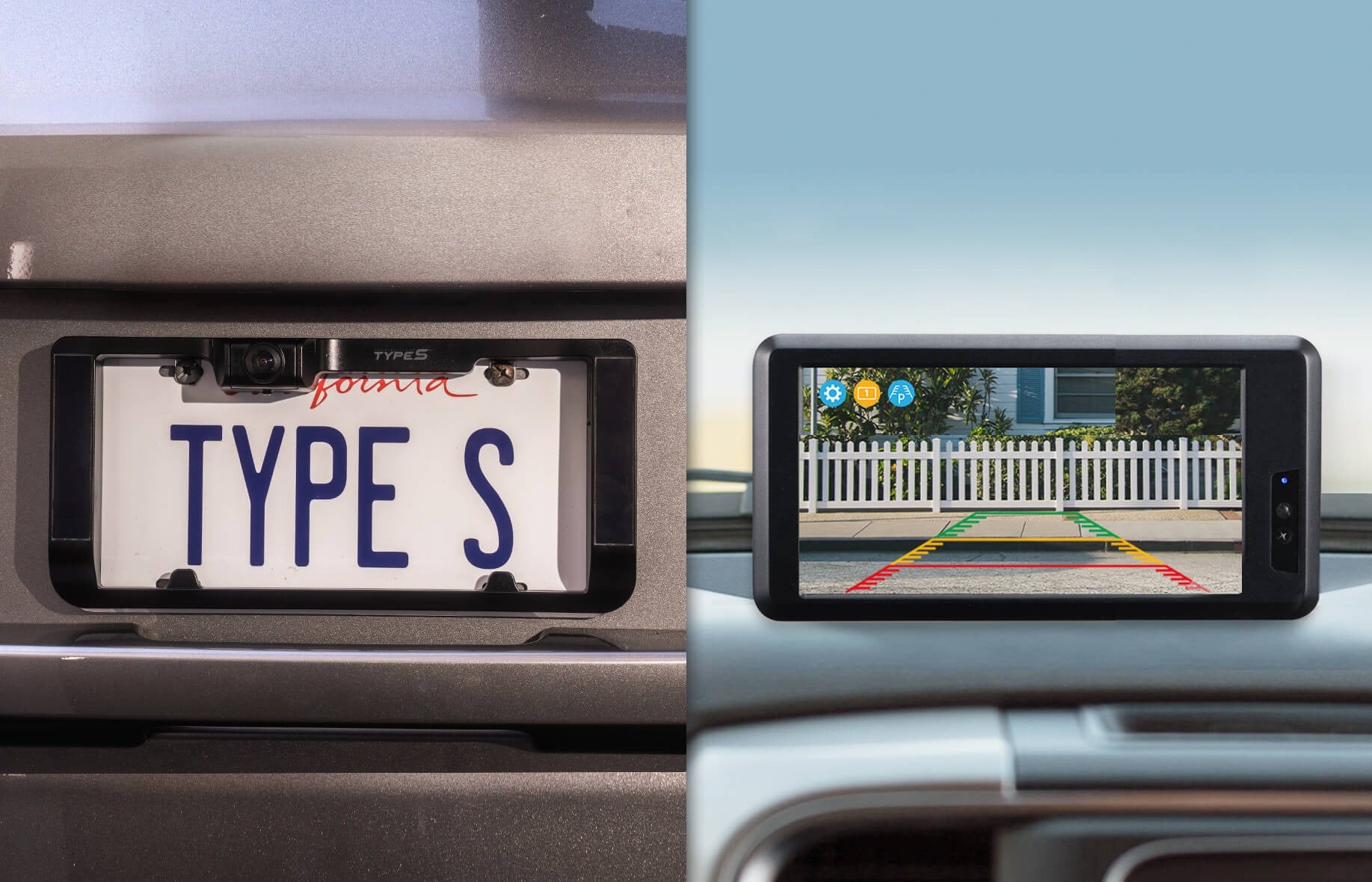

Vehicle did not come with a built-in backup cam? This TYPE S portable HD camera is exactly what you need. It’s universally compatible with cars, trucks, buses and RVs. It’s conveniently built-into a license plate frame, and the visual transmission to the large 6" monitor is completely wireless so there’s no need to run a long cable through your vehicle.
Vehicle did not come with a built-in backup cam? This TYPE S portable HD camera is exactly what you need. It’s universally compatible with cars, trucks, buses and RVs. It’s conveniently built-into a license plate frame, and the visual transmission to the large 6" monitor is completely wireless so there’s no need to run a long cable through your vehicle.

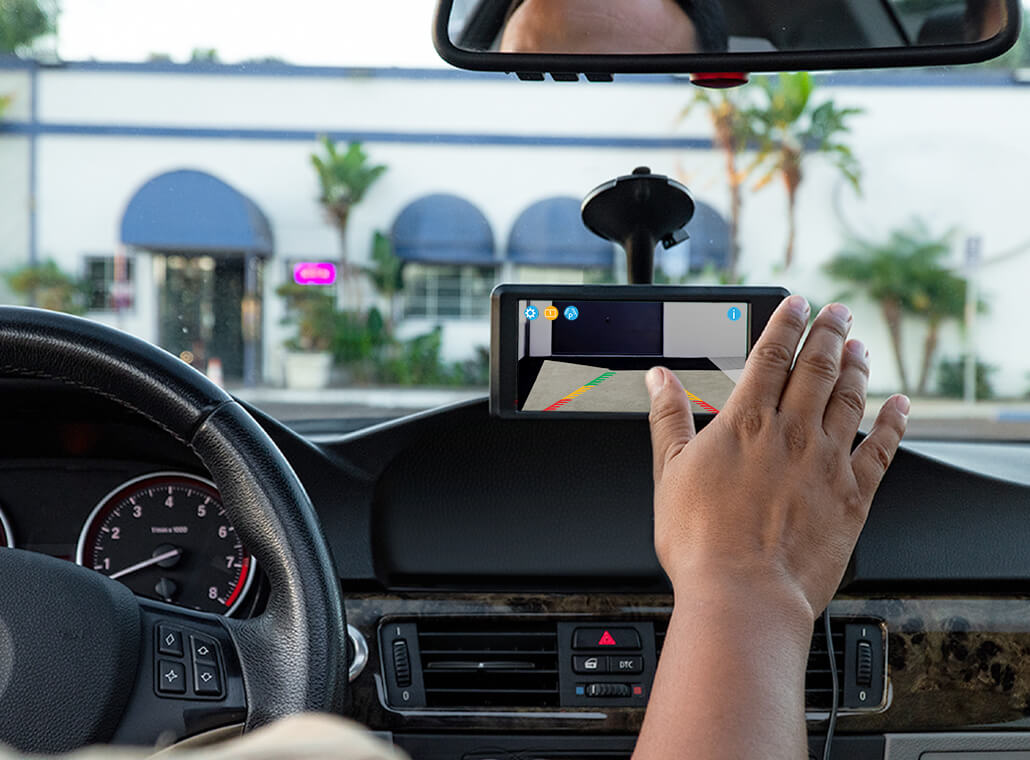

We made the product with your safety in mind. The large touchscreen display monitor screen as well as the camera itself can be instantly activated with a wave of hand, quick & easy. This also applies when you’re driving forward, allowing you to see all the blindspots when you’d like to switch lanes, not just when you're backing up.

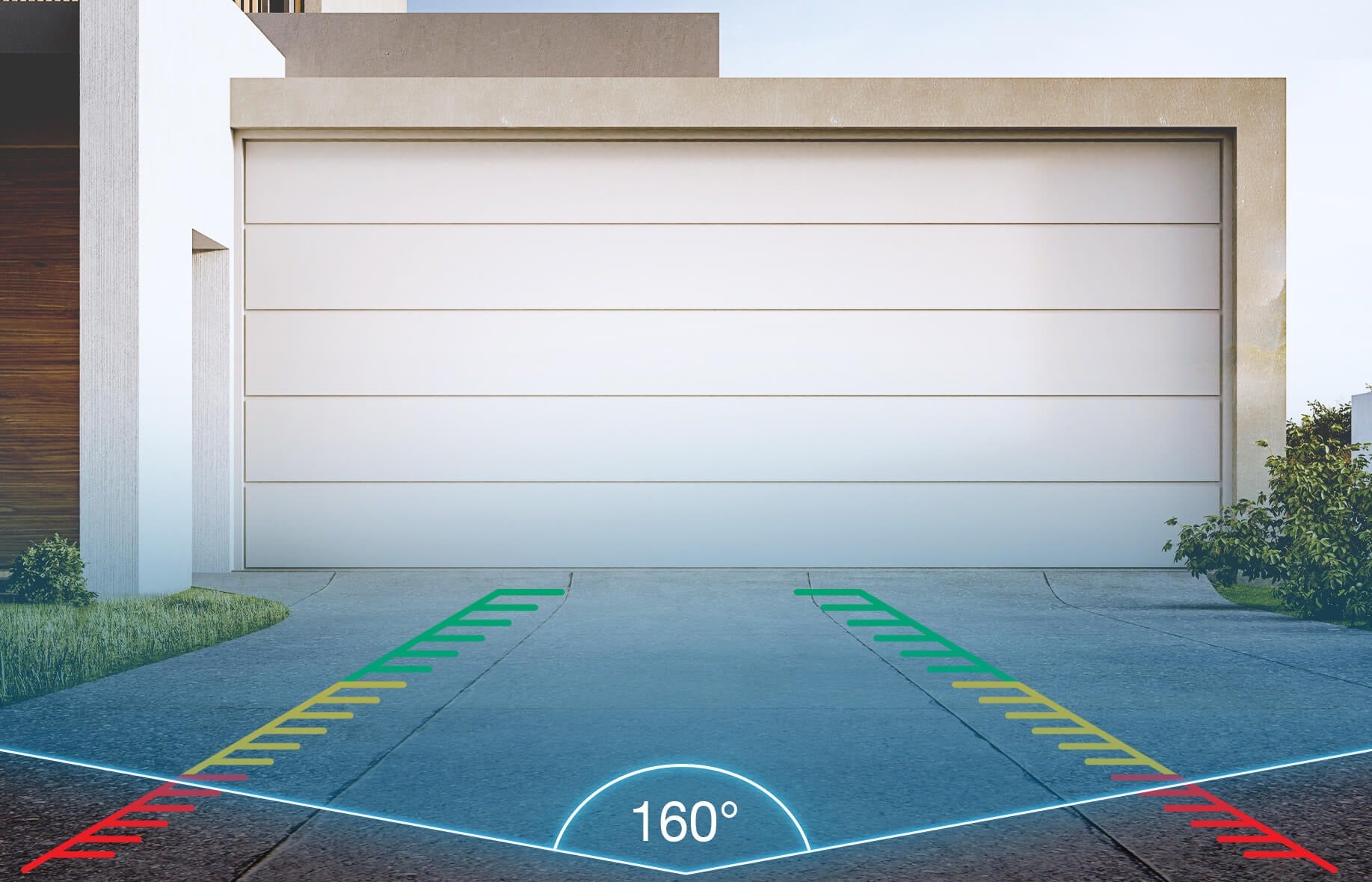

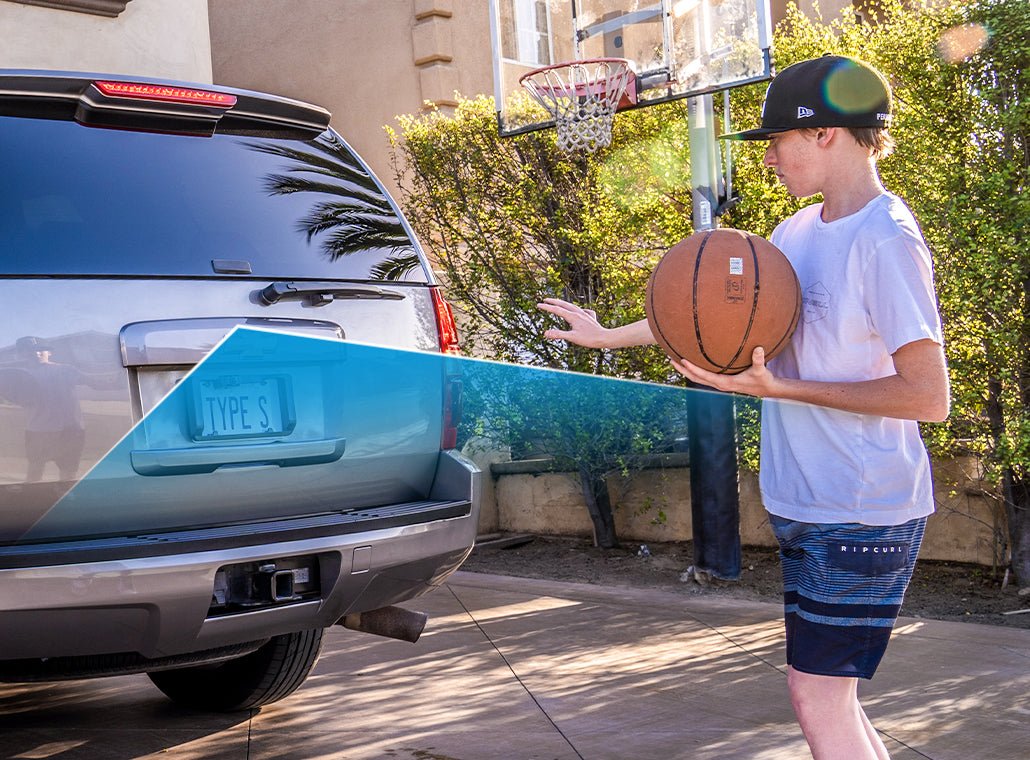

With its 160° wide angle lens, the portable rearview cam will cover the entirety of what’s behind your vehicle. Paired with the HD resolution and automatic night vision, you will be able to see every single detail with clarity even when in the dark, significantly reducing the chance of accidents while backing up your vehicle. Less dents, more safety.

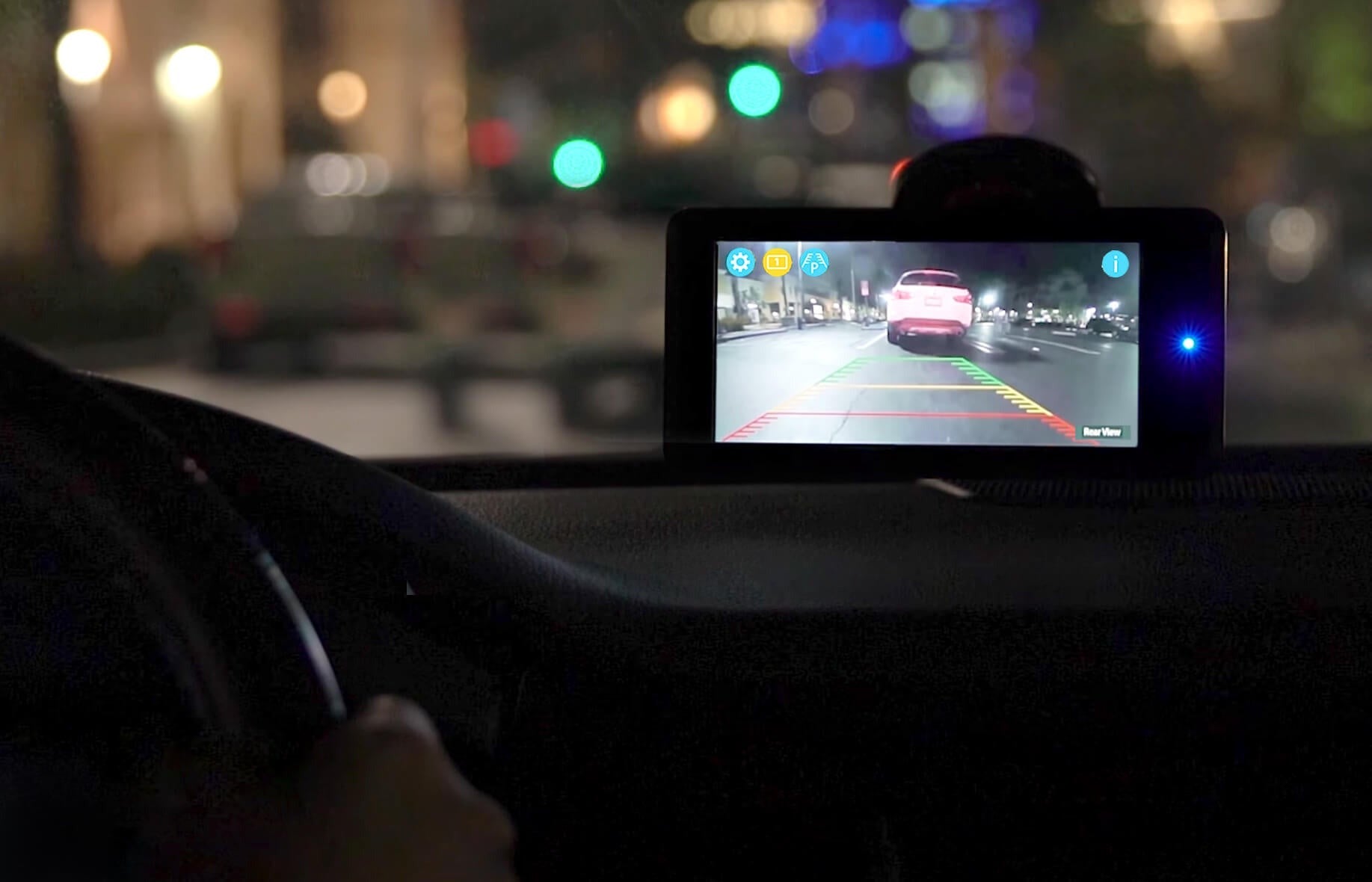

The night (and your garage) is dark and full of obstacles, but you won’t need Melisandre or the Lord of Light to show you the way; with an integrated digital HD image processor, the camera will get you superior night vision of up to 30 feet in complete darkness.
With its 160° wide angle lens, the portable rearview cam will cover the entirety of what’s behind your vehicle. Paired with the HD resolution and automatic night vision, you will be able to see every single detail with clarity even when in the dark, significantly reducing the chance of accidents while backing up your vehicle. Less dents, more safety.
The night (and your garage) is dark and full of obstacles, but you won’t need Melisandre or the Lord of Light to show you the way; with an integrated digital HD image processor, the camera will get you superior night vision of up to 30 feet in complete darkness.
The Wireless Backup Camera features a Solar Panel that will always keep your device fully charged, all year long. The solar panel is built with extremely durable material and can function under any kind of weather: Rain, snow, wind, and heat. When sunlight isn't sufficient, you may also recharge the portable camera with any micro-USB cable.

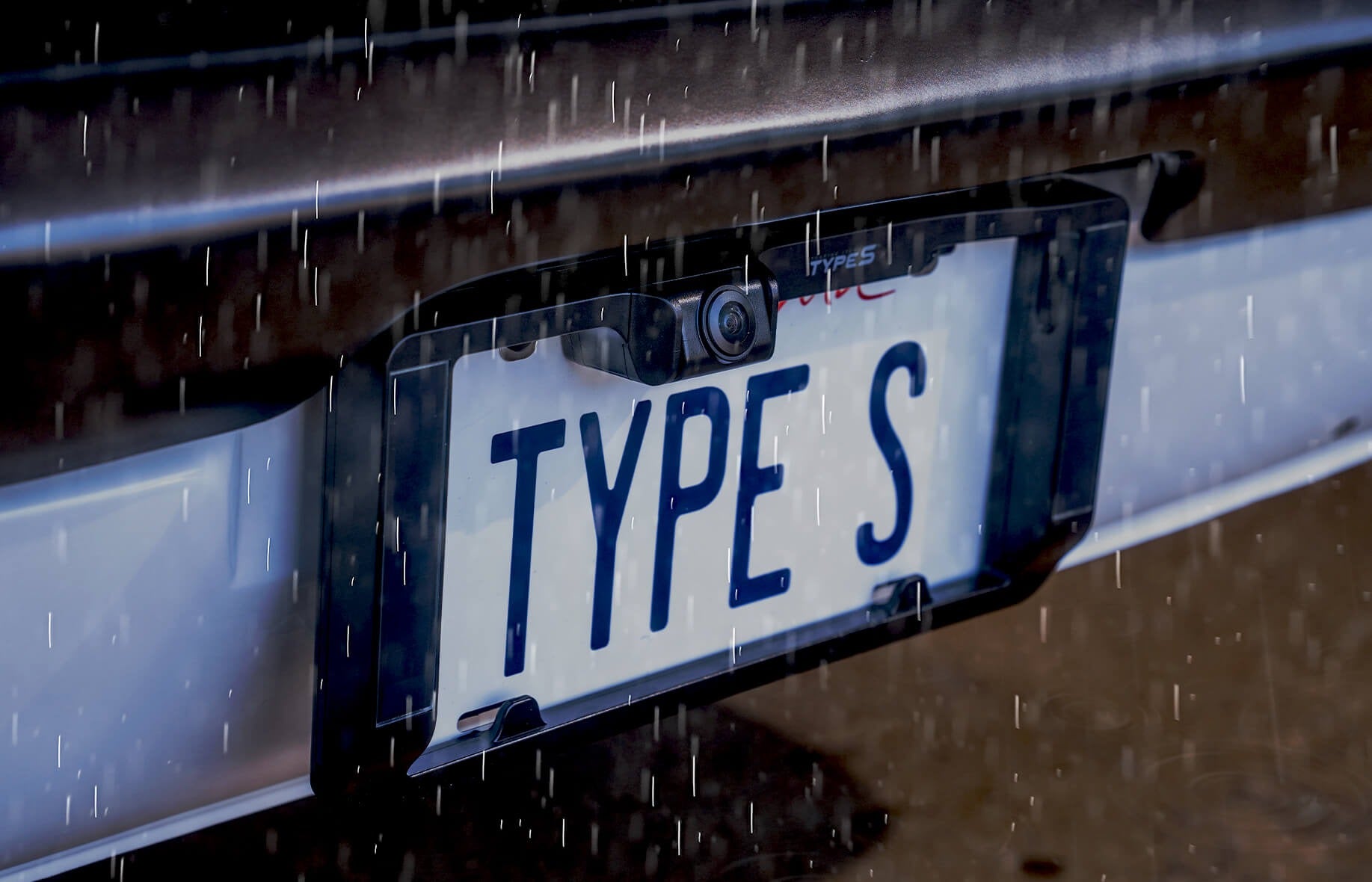

The Hi-Definition backup camera is engineered with extremely durable IP67 material that’s built to withstand any kind of condition; rain, snow, or heat… it’ll stay securely attached to the back of your vehicle. The suction cup of the monitor is designed to stick tightly on your windshield, allowing you to safely focus on driving.
The Hi-Definition backup camera is engineered with extremely durable IP67 material that’s built to withstand any kind of condition; rain, snow, or heat… it’ll stay securely attached to the back of your vehicle. The suction cup of the monitor is designed to stick tightly on your windshield, allowing you to safely focus on driving.
FAQ
What is the resolution of the image?
The resolution is 1080P.
Will this backup camera break in a car wash?
Solar Powered HD Backup Camera waterproof standard is up to IP68. You don't need to take it off when car washing.
Do I need to charge my Backup Camera before use?
We recommend to fully charge the Backup Camera for first time. Our packaging come with a microUSB cable for charging by USB adaptor. After installation, the Backup camera can be charged with Solar panel. Make sure your car is not parked at your garage or shaded location. Try to have 2 - 4 hours of good sunlight to recharge the camera each day.
Where can I download the app?
Go to App Store / Google Play and search for "Type S Drive". Click here to download from the Apple Store. Click here to download from the Google Play Store
My camera flashes Red LED continuously.
It means Low Battery of you backup camera, please charge it by solar panel or USB Cable.
Camera battery not charging with solar.
Please make sure the Backup Camera under the big Sunlight.
Will this camera work with my truck?
We don't recommed to use this produt for truck. It may take more longer when you use APP to coonect with Bakup Camera each time.
How do I reset the password from the app?
While the Backup Camera is on, press and hold the power button for more than 5 seconds and then release. Blue LED light should flashes 5 times.
What is the wireless frequency?
The camera is connected to mobile device under2.4GHz IEEE 802.11 b/g/n WiFi.
What if I don't have a cigarette lighter?
You would need to install one, unfortunately the power adapter is designed to plug into a lighter socket.
Product specification
Monitor:
Length: 9.05 in / 23 cm
Width: 0.83 in / 2.1 cm
Height: 3.15 in / 8 cm
Backup Camera:
Length: 12.2 in / 31 cm
Width: 1.26 in / 3.2 cm
Height: 5.91 in / 15 cm
Monitor: 0.51lbs / 231 g
Backup Camera: 0.62lbs / 281 g
2.4GHz
Monitor: DC 12/24V Car Charger Adapter
Backup Camera: DC 5V
14°F ~ 122°F / -10°C ~ 50°C
IP65 Rating
5200mAh
33 feet / 10 Meters (without interference or obstruction)
BT533080-60 (UPC 840005330807)
In the Box
- 6" Motion Activated HD Monitor
- Wireless Backup Camera with Extended Battery Life
- 12V / 24V Power Adapter
- 250V 2A Spare Fuse
- Windshield Mount
- 33" MicroUSB Charging/Data Cable
- 2 x License Plate Machine Screw (Optional)
- 2 x License Plate Self-Tapping Screw (Optional)
- 2 x Two-Way Mounting Tab (Optional)
- 2 x Mounting Screw & Nut (Optional)
- Dash Mount
- Instructional Manual
- Quick Install Guide
- Warranty Card
