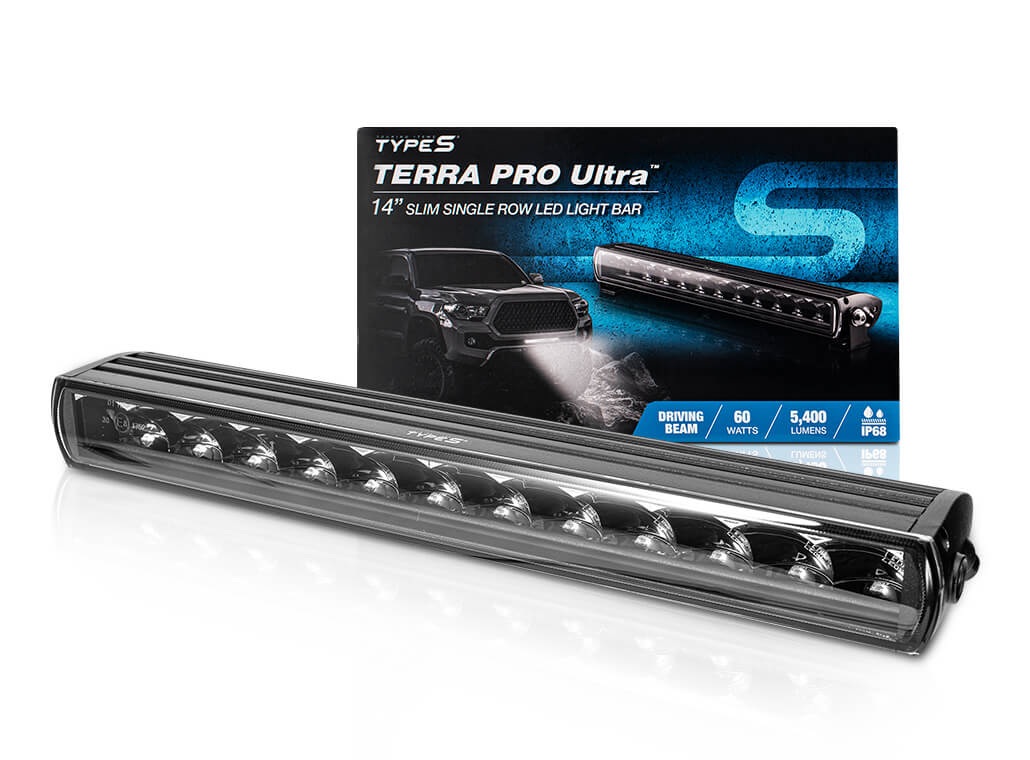

TYPE S TERRA PRO Ultra Slim 14" Single Row LED Light Bar
Code copied!
The TERRA PRO series is designed for year-round off-road adventure. No matter the season, TERRA PRO will provide strong, dependable light for your journey into the unknown.
Bright is an understatement, especially considering the size. This light bar features 5,400 raw lumens of brightness at a crisp color temperature of 6500K.
Bright is an understatement, especially considering the size. This light bar features 5,400 raw lumens of brightness at a crisp color temperature of 6500K.
TERRA PRO Ultra Slim 14" Light Bar projects a focused beam pattern that stretches nearly 1,300 feet.
Premium LEDs that could outlast your vehicle.
TERRA PRO Ultra Slim 14" Light Bar projects a focused beam pattern that stretches nearly 1,300 feet.
Premium LEDs that could outlast your vehicle.
Kit includes one light bar and mounting gear.
FAQ
Is this LED Spot Light DOT approved?
We recommend to check local and state laws when using LED products in a moving vehicle. This item is recommended for off road use; it is not DOT approved.
What is the operation voltage?
It works with DC 12V and 24V vehicle.
How are the LEDs powered?
The LED Light Bar are powered with the included 12V/24V hardwire cable.
What type of LED do you use?
12 x 3535 White LED
Can this kit be used on the exterior of the car, is it waterproof?
Yes, this kit is intended for exterior use. LED Spot Light are IP68 waterproof rated.
What kinds of mode does this kit have?
Spot only
How many color does this kit have?
1 color only, ultra-bright white
Why the light is not working?
It can be poor power connection, please check power connection, try to disconnect power and reconnect.
How many lumens is this LED Light Bar?
5,400 Raw Lumens
How many watts is the LED Light Bar?
60W
How many amps does the light bar draw?
3.8A@12V & 1.67A@24V
What kinds of color temperature does this kit have?
6,500K White
Product specification
Length: 13.9 in / 353 mm
Width: 2.68 in / 68 mm
Height: 2.17 in / 55 mm
1.83 lbs / 830 g
Spot Driving
6500K
5,400
2,900
60W
3.8A (12V) / 1.67A (24V)
DC 12-24V
IP 68 Dust & Waterproof
+50,000 Hours
LM58301-2 (UPC 643334583018)

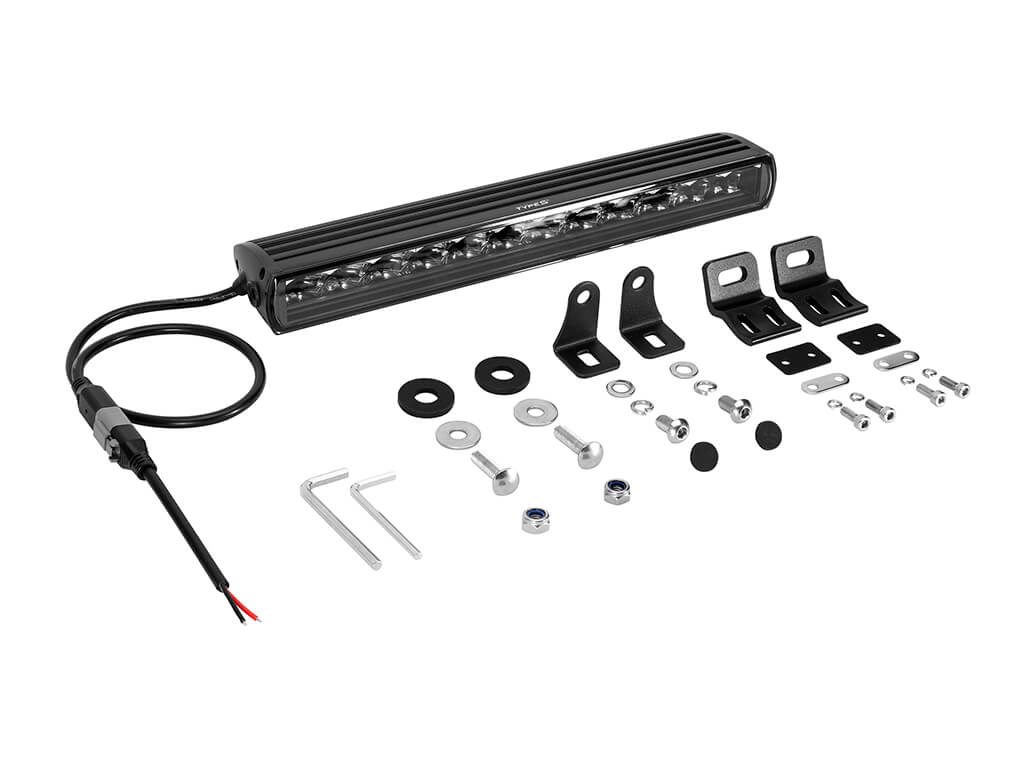

In the Box
- 1 x 14" Ultra Slim Light Bar
- 2 x Bottom Brackets
- 2 x Rubber Pads
- 2 x Bottom Bracket Pads
- 4 x Screws (M5)
- 4 x Spring Washers (M5)
- 2 x Side Brackets
- 2 x Spring Washers and Flat Washers (M8)
- 2 x Screws (M8)
- 2 x Carriage Bolts and Self-locking Nuts (M8)
- 2 x Flat washers (M8)
- 2 x Rubber Pads (M10)
- 2 x Sliding Bracket (M5) (Pre-installed)
- 1 x Instruction Manual
- 1 x Warranty card
- 2 x Allen Key (5mm & 4mm)
